digital diesel flow meter
4 digital Diesel Fuel Oil Flow Meter Counter High Accuracy 1%
-It is made of high-quality die-cast aluminium (back side ) and designed for a long operational life.
-Suitable for fuel oil / diesel pump. 4 digit subtotal and 8-digital total Readout indicates the current flow up to 9.999 litre and
the 8 digits (totaliser) the total flow rate up to 999.999 litre.
-Specification:
Flowing rated :19-76LPM.
Max. operating pressure :50psi/3.5bar
inlet /outlet :1",
Working temperature :-20-100
Product Description
| Model Number |
4-Digit Flow Meter |
| Medium |
Diesel, Kerosene, Gasolene |
| Inlet Size |
BSPT/NPT 1” |
| Flowrate |
0-120L/Min |
| Metric Accuracy |
±1% |
| Accumulative Counting Digit |
8 Digits |

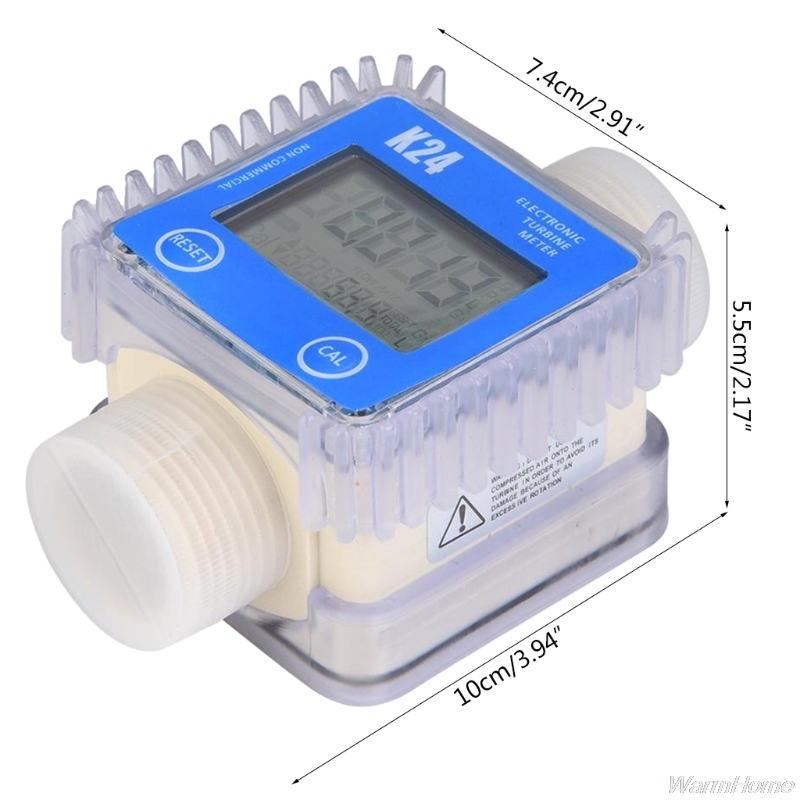

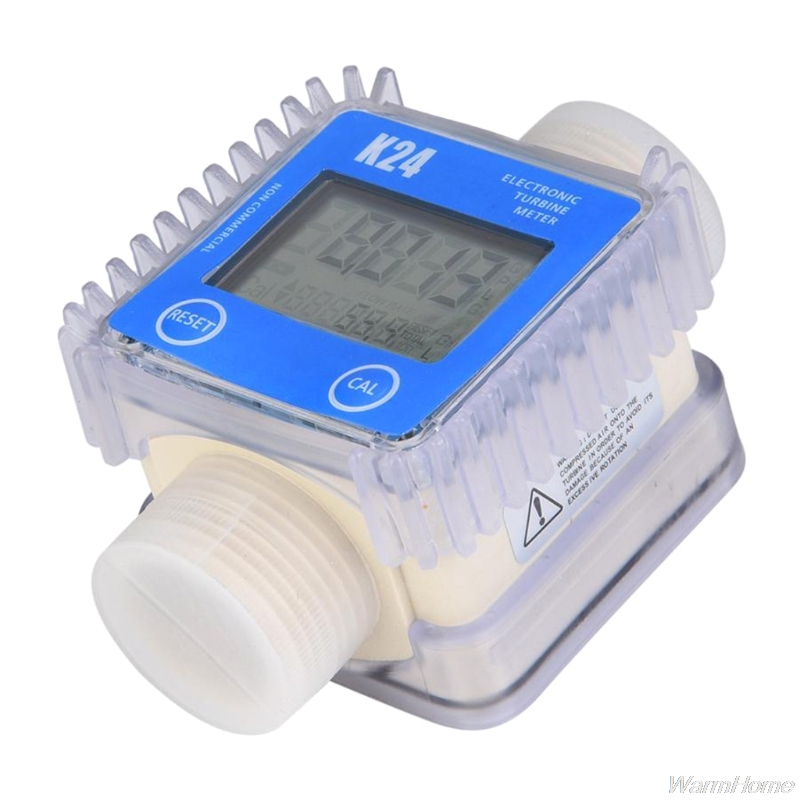

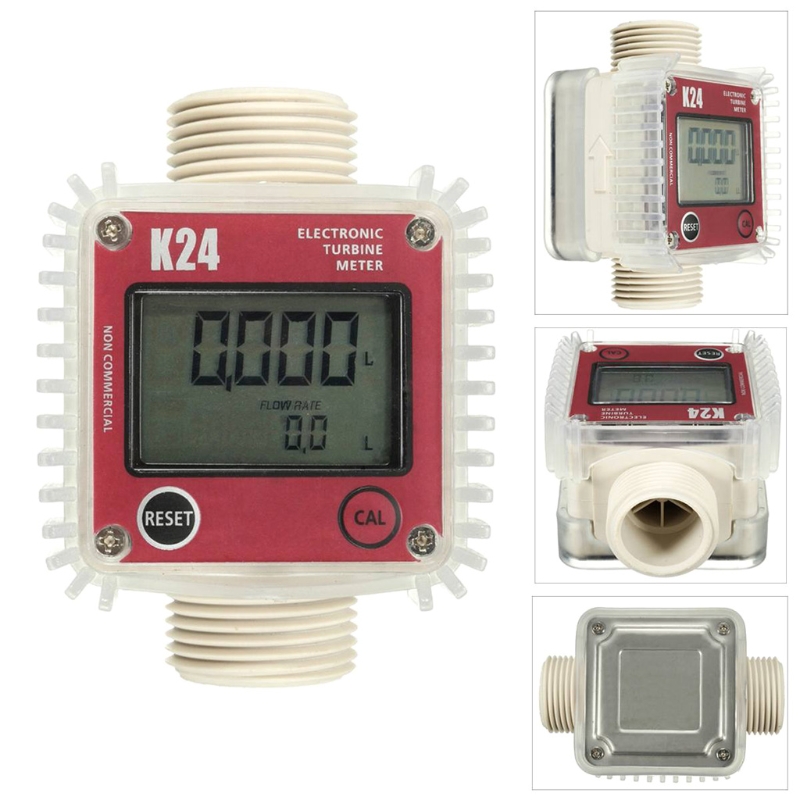

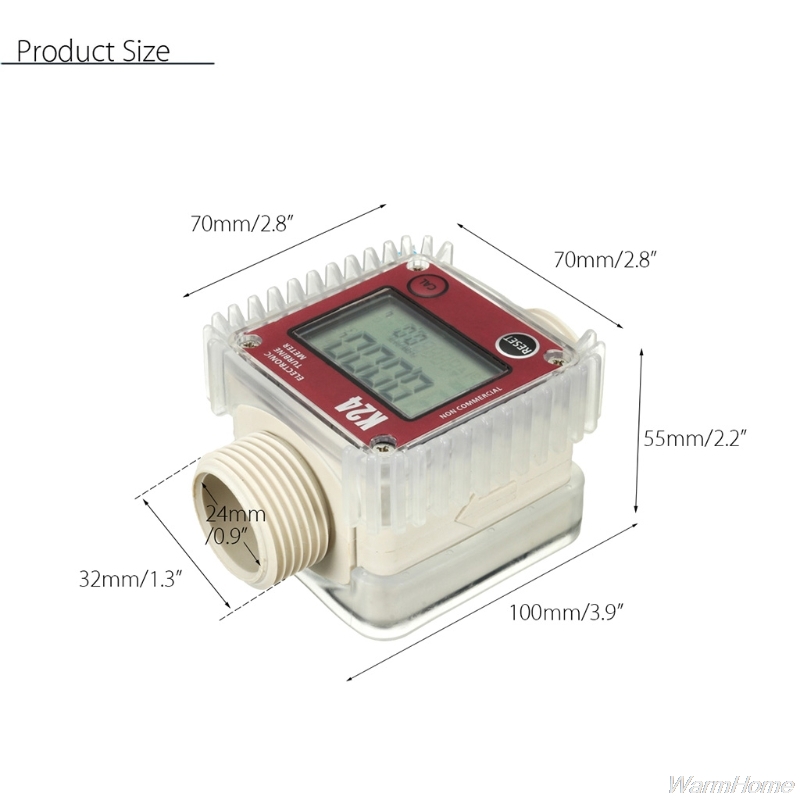

K24 Turbine Digital Diesel Fuel Flow Meter Gauge Voor Chemicaliën Vloeibare Water Ultrasone Oil Flow Meter
*This chemical flow meter control panel adopts modular design.
*It is fully functional, convenient to operate and has simple structure.
*Large LCD display is convenient for clearreading.
*It can be used to meter methanol, kerosene, diesel, fuel, urea water.
*Widely used in petroleum, chemical industry, medicine, transportation, food industry and business field.
Specifications:
Model: K24
Fluid:Methanol, diesel, fuel, kerosene, urea water
Importers: 1 inch male thread
Inlet/Outlet Thread: G1 (BSPP)
Measurement Accuracy:±1%
Repeatability:±0.5%
Maximum. Pressure: 5BAR
Working Voltage:2.3-3.3V
Standby Time: 2 years
Flow Range:10-90L/MIN
Single Count: 0.00-9999.9
Total Count: 0.00-999999.9

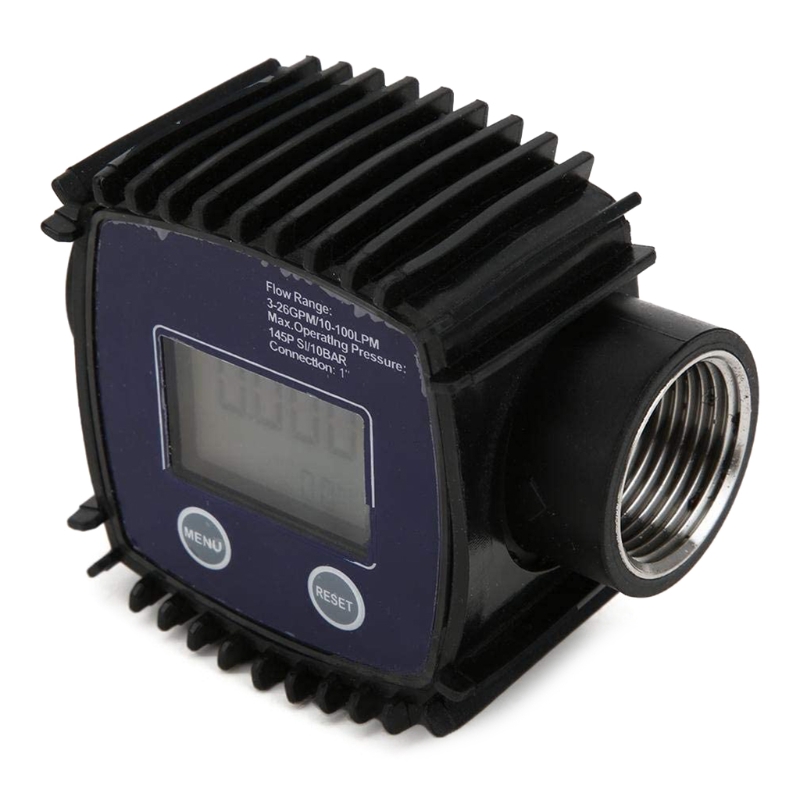

Instruction:
1. Measuring Unit Setting
Under standby state or current amount display state, press and hold MENU+RESET buttons for 5 seconds to enter unit conversion setting, then press RESET button to select unit in turn of LTR - GAL - PT - QT - LTR. Press and hold MENU button for 3 seconds to exit unit conversion setting.
2. Accumulative and Current Amount Reset
Press and hold RESET button and LCD screen displays on full screen, wait till the full screen display end then loose the RESET button. At this time the accumulative amount and current amount is reset.
3. Error Coefficient and Accumulative Amount Inquire
Under standby state, press MENU + RESET button together, then LCD display shows the error coefficient on the upper row, and accumulative amount on the lower row.
4. Error Coefficient Calibration
Under standby state or current amount display state, press and hold MENU button for 3 seconds to enter error coefficient calibration mode. The first digit flashes, press MENU button to change position of the digit, and press RESET button to change digit. As this coefficient increases, output oil quantity reduces. Then press and hold MENU button for 3 seconds to end error coefficient calibration and return to current amount display state, and the current amount is reset as zero. The calibration error coefficient range is 0.1000 to 9.9999. For example, original coefficient is 1.000, when it displays 100 liters output of oil, the actual oil output is 100 liters. If you need 2 liter reduced, set the coefficient as 1.020, then the output would be 98 liters.
5. Maintenance
When battery voltage is too low, a battery symbol appears on the LCD display, which reminds user to replace battery. Too short battery life can cause damage to the meter because of battery leakage. This meter has designed standby life of about two years, but we suggest customer to replace a battery each year, and check battery electrodes if there is any rust. Battery should be removed if not using flow meter during long time.
Package Includes:
1 xTurbine Flow Meter
Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

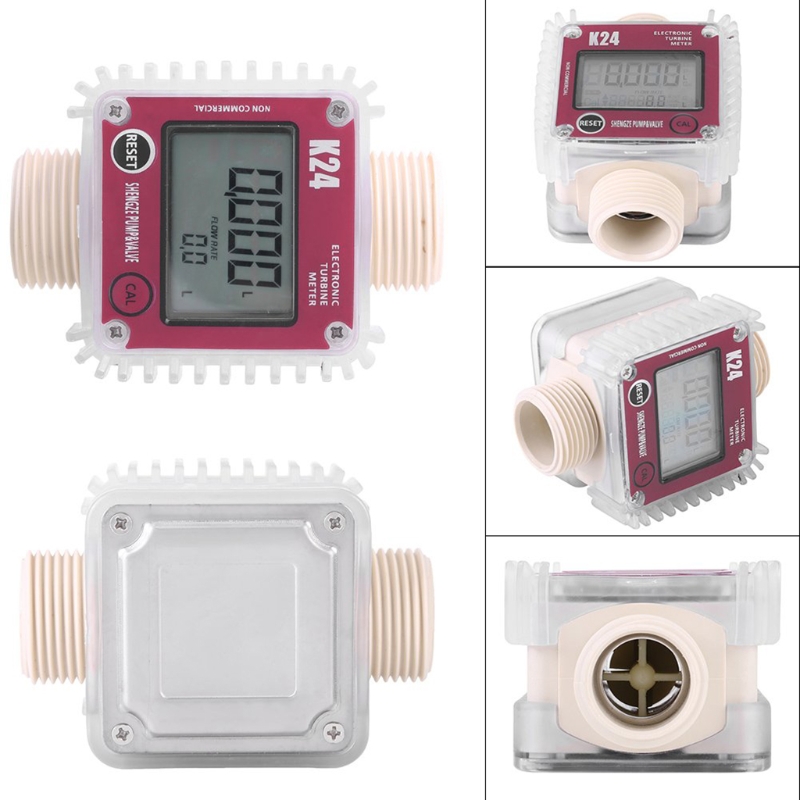

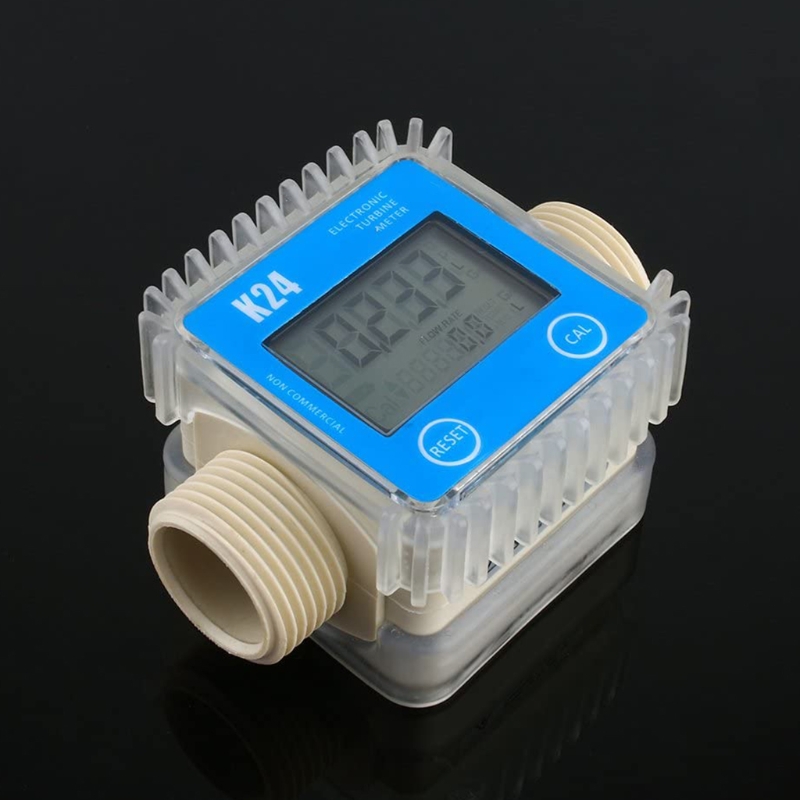

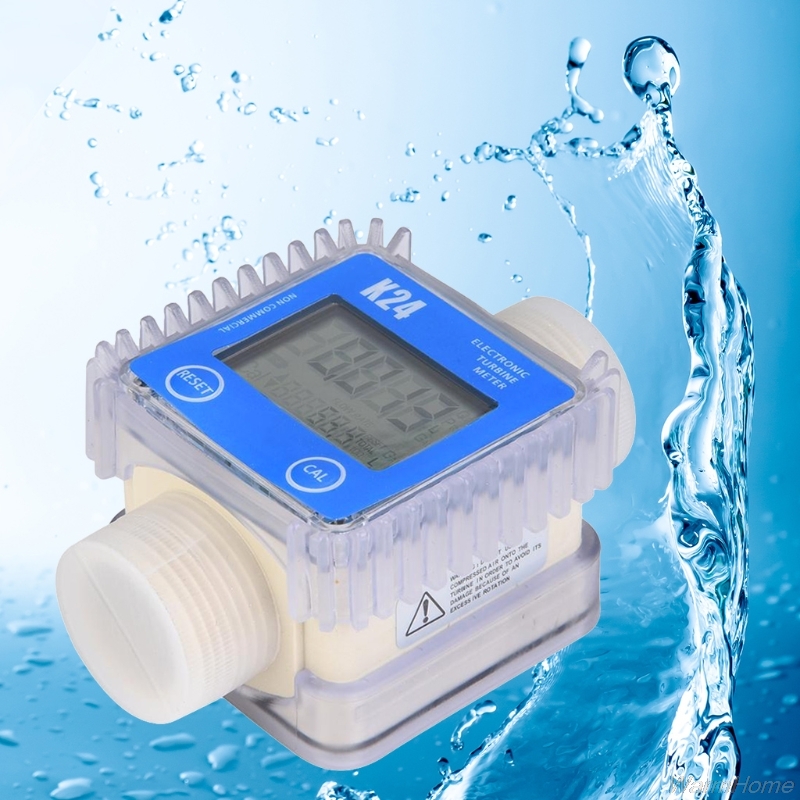

K24 Turbine Digital Diesel Fuel Flow Meter Gauge Voor Chemicaliën Vloeibare Water Ultrasone Flow Hot Jy18 21
K24 Turbine Digital Diesel Fuel Flow Meter Gauge Voor Chemicaliën Vloeibare Water Ultrasone Flow Hot Jy18 21
Features:
[Excellent Quality] This fuel flow meter is made of premium material, durable and easy to use.
[Good Performance] The K24 turbine digital die-sel fuel flow meter has modular design, fully functional, simple structure and high stability, convenient to operate.It can be used to meter methanol, kerosene, die-sel, fuel, urea water.
[LCD Display] Digital die-sel fuel flow meter comes w/ large LCD display which is convenient for clear reading.It is fully functional, convenient to operate and has simple structure.
[High Accuracy] The measuring accuracy of this flow meter is ±1%, fit for most places.
[Application] Widely used in petroleum, chemical industry, medicine, transportation, food industry and business field.
Specifications:
Material: plastic
Color: blue/red
Size: 10x10x10cm
Package Includes:
1 pcs K24 Flowmeter.
Note:
Please allow 0-1cm error due to manual measurement. Make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

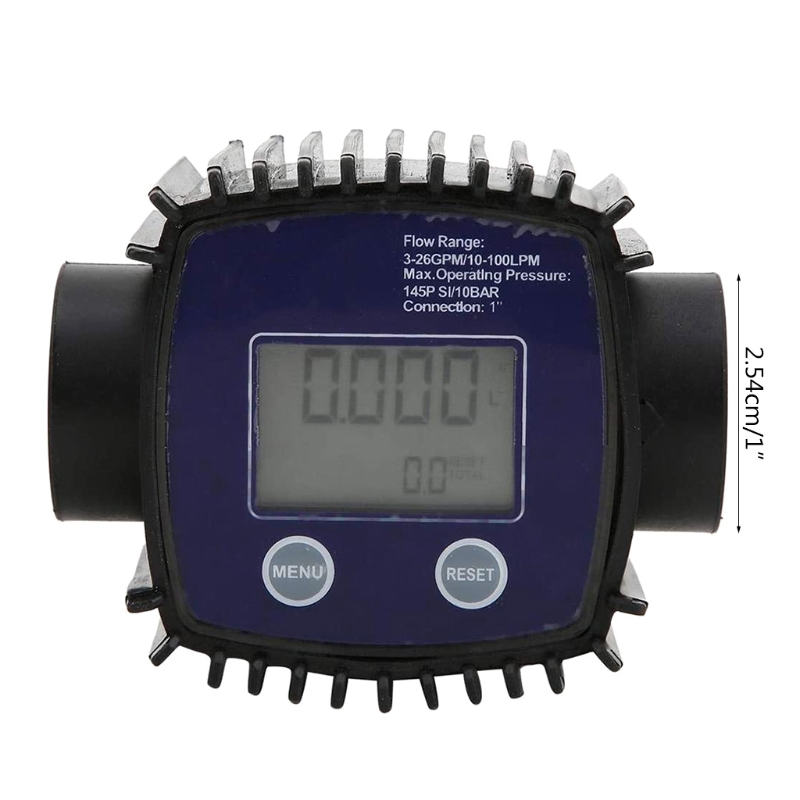

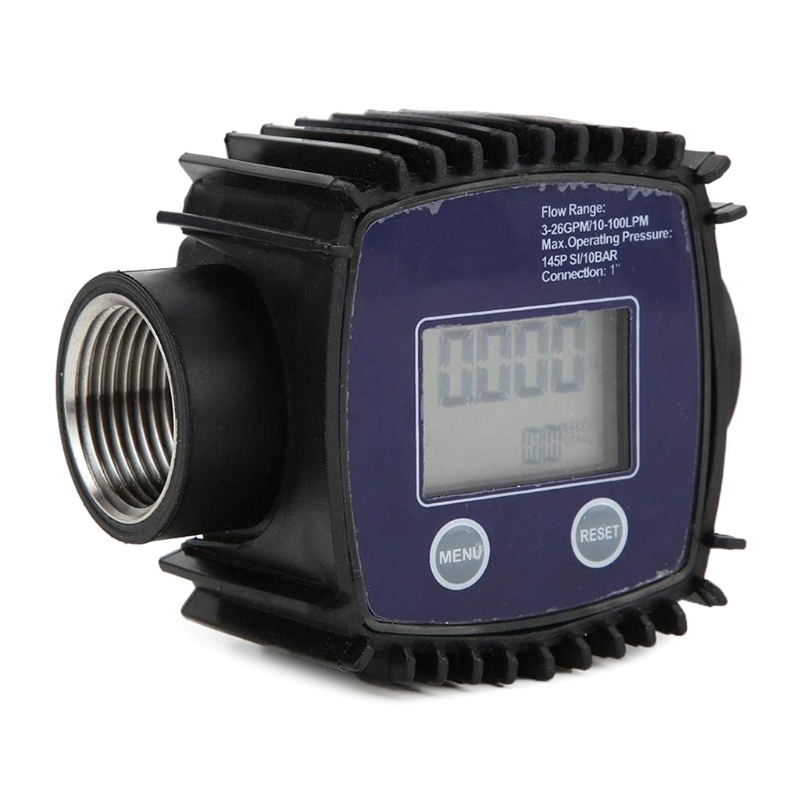

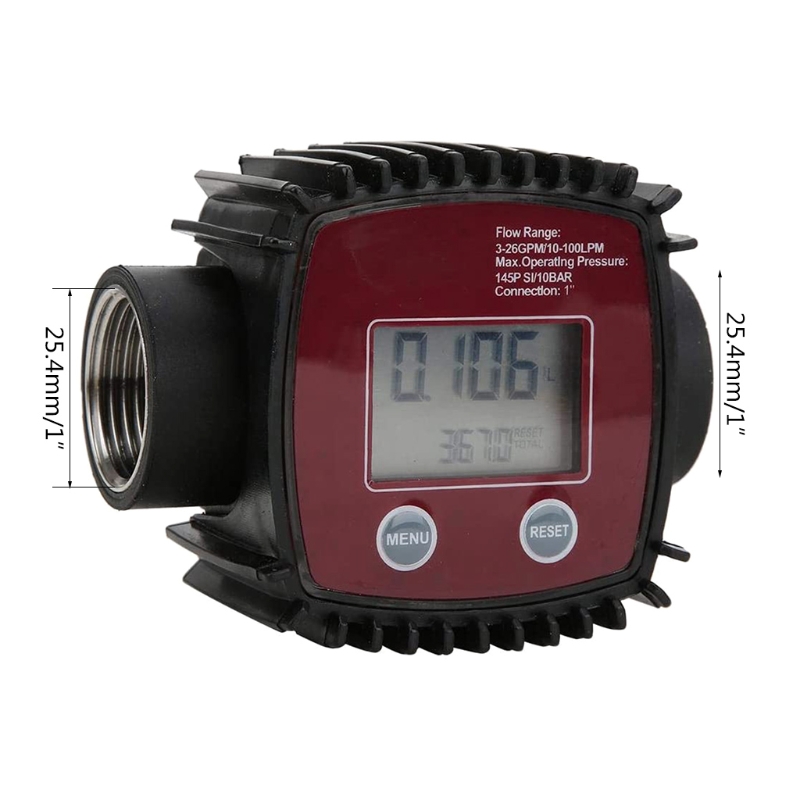

ALLSOME LLW - 25 Digital Turbine Flow Meter for Measuring Gasoline Diesel Kerosene
The control panel of this product is designed modularly, featured by high accuracy, compact size and stable performance. It's widely used in numerous fields such as oil industry, chemicals, medicine, food industry, transportation and commercials.
Features:
Compact structure, easy to install.
High-definition displays show, intuitive clear reading.
It can count instantaneous and cumulative flow.
Can be widely used to measure diesel, kerosene, gasoline, urea, etc.
Parameter:
Working voltage: 2.3 - 3.3V
Connection caliber: 1" NPT
Maximum working pressure: 20bar
Unit: L, gal, pt, qt
Single count: 0.00 - 9999.9
Working temperature: -10℃ - 60℃ (-14℉ - 140℉)
Battery type: 2 x AAA battery (built-in)
Measure accuracy: ± 1%
Flow range: 10 - 120L / min
Repeatability: ± 0.5%
Total cumulative count: 0 - 99999
Applicable liquid: diesel, urea, kerosene, gasoline
Package Size(L x W x H): 11.00 x 7.50 x 6.00 cm / 4.33 x 2.95 x 2.36 inches

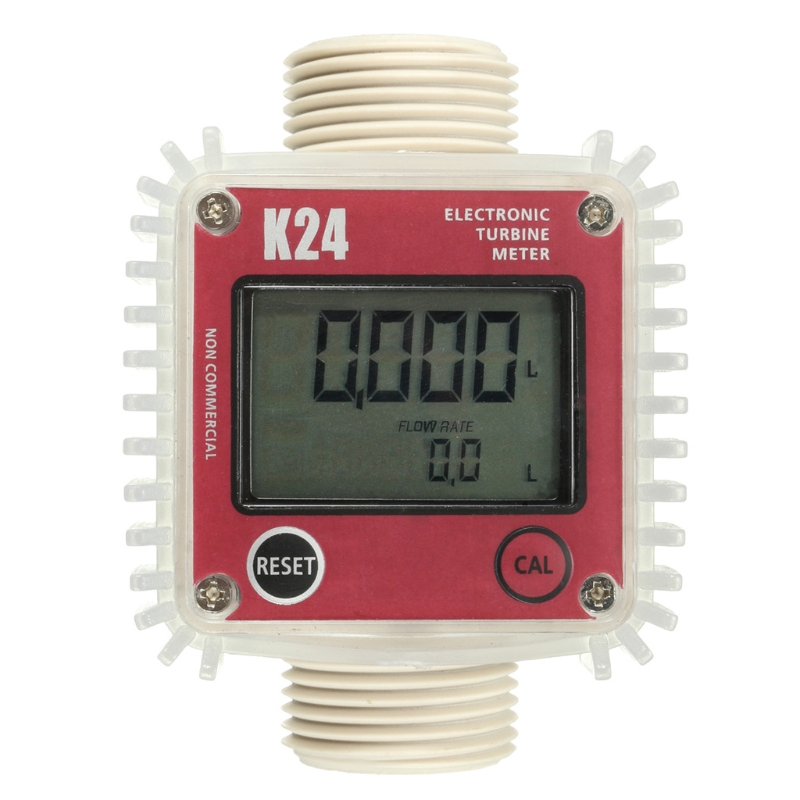

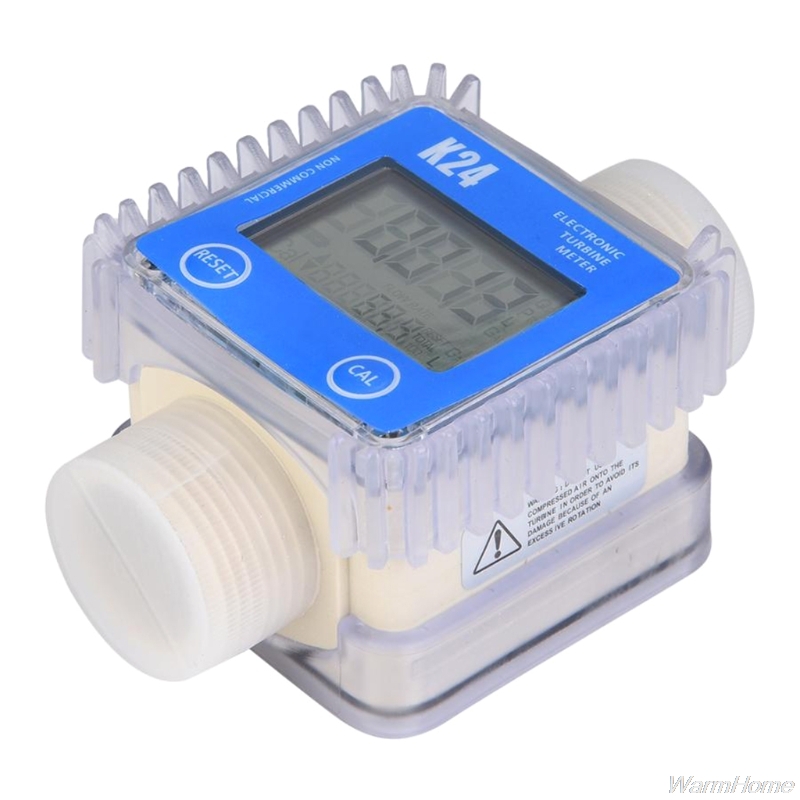

1Pcs K24 LCD Turbo Digital Diesel Fuel Flow Meter Chemical Meter Liquid Water Overseas Warehouse
1Pcs K24 LCD Turbo Digital Diesel Fuel Flow Meter Chemical Meter Liquid Water Overseas Warehouse
Description:
Control panel with modular design, fully functional, simple structure, convenient operation. Can be widely used in petroleum, chemical, pharmaceutical, transportation, food to be industrial and commercial.
Specifications:
Model: K24
Media: methanol diesel fuel kerosene chemical liquid urea water
Importers: 1 inch internal thread
Length: 103MM
Measurement accuracy: ± 1%
Repeatability: ± 0.5%
Maximum working pressure: 5BAR
Operating voltage: 2.3-3.3V
Standby time: 2 years
Flow range: 10-90L / MIN
Single count: 0.00-999.9
The total cumulative number: 0.00-999999
Unit: L / L, gal / GAL, pint / PTS, quart / QTS
Single measurement cleared: RESET
Setting units of measurement:
In the standby mode, or raise the amount of current display state
Press CAL + RESET button for 5 seconds
Enter unit conversion settings, press the RESET button
Followed by LTR - GAL- PT- QT- LTR choose the unit of measurement
While the cumulative filling volume displayed in the current unit of measure conversion after
Press the MENU key for 3 seconds to exit the unit conversion settings.
Note:
This product requires 2 AAA batteries, more convenient for you to use, this product comes with 2 AAA battery replaceable battery
Low Battery Tips
When the battery voltage is 2.2V to 2.4V, display LBat, to remind the user to replace the battery.
Package contains:
1xK24 Turbine Digital Diesel Fuel Flow Meter
Note:
The decimal point of the product is the old and new models, which will be shipped randomly and will not affect the use of product functions.
(Real picture show)

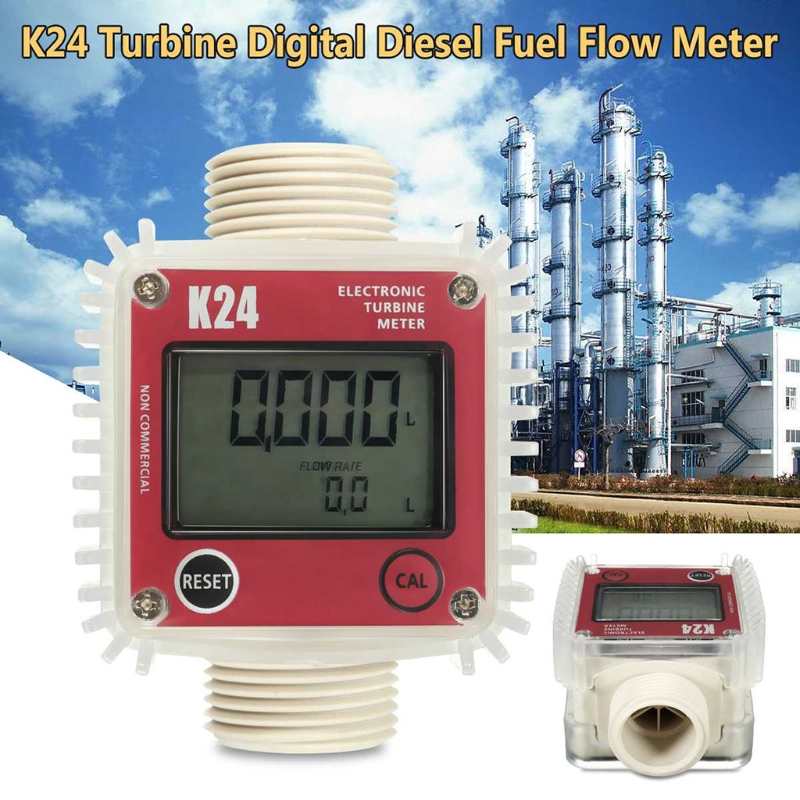

K24 Turbine Digital Diesel Fuel Flow Meter Gauge Voor Chemicaliën Vloeibare Water Ultrasone Flow Dropshipping
[Excellent Quality] This fuel flow meter is made of premium material, durable and easy to use.
Areyourshop Turbine Digital Diesel Fuel Flow Meter Oval Gear Flow Gauge BSPT/NPT
Feature:
1: The digital turbine fuel flow meter can be used to measure diesel, gasoline, kerosene, methanol, water and so on.
2: It is high accuracy, durable, small volume turbine flow meter, and design with output module.
3: Zero function, instantaneous flow, and cumulative flow readings on the display with the arccuracy of ±1%.
4: The features of the display are, 2 accumulations, resetting and accumulating and optional unit conversion of Gallon and Liter.
5: The flow meter is made of corrosion-resistant aluminum housing and stainless steel turbine, and have superior sturdiness and durability.
6: With 2 x LR03 AAA batteries, the circuit is stable, long-service life and high efficiency. Do not forget to remove the battery when out of use because it is long-working and can't be turned off.
Specifics:
Condition: 100% Brand New
Material: Aluminum
Connect Type: NPT ANS
Accuracy: ±1%
Maximum working pressure: 0.6MPA
Thread size: 1"/1.5" (Optional)
Batteries: 2 AAA batteries required.(included)
Applicable medium: diesel, gasoline, methanol, water
Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Included:
1x Turbine Digital Diesel Fuel Flow Meter

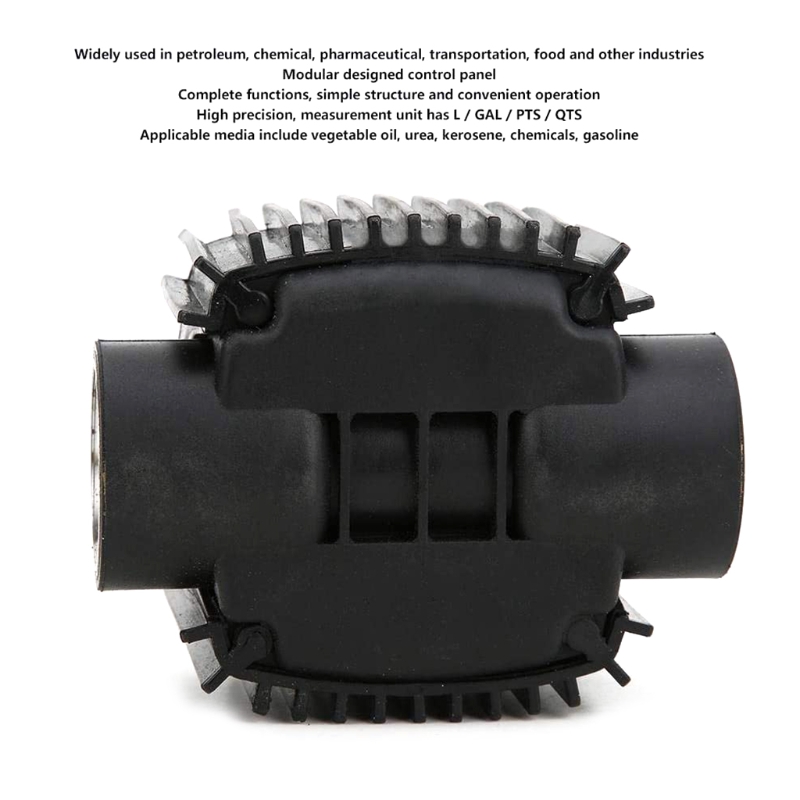

Digital Diesel Fuel Flow Meter Flow Controller Professional Gear for Water
Digital Diesel Fuel Flow Meter Flow Controller Professional Gear for Water
Feature:
1. HIGH ACCURACY: Single count is 0.00‑9999.9, total cumulative count from 0.00‑999999, possess high measurement accuracy about 0.7%2. VARIOUS MEASURING MEDIUM: Measurable medium contain urea, gasoline, diesel, kerosene, chemicals, water, etc., very versatile
3. FOR MANY INDUSTRIES: Come with complete functions, simple structure, convenient operation, suitable for petroleum, chemical, pharmaceutical, food, commercial and other industries
4. HIGH TEMPERATURE AND CHEMICAL CORROSION RESISTANT: Adopt PPS material, possess high mechanical strength, high temperature resistance, chemical corrosion resistance, flame retardant, good thermal stability
5. EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability
Specification:
Item Type: Digital Diesel Fuel Flow Meter
Item Model Number: k28
Material: PPS
Measuring Medium: Urea, gasoline, diesel, kerosene, chemicals, water
Inlet And Outlet Diameter: 1in
Measurement Accuracy: ±0.7%
Repeatability: ±0.4%
Maximum Working Pressure: 10bar
Working Voltage: 2.3~3.3V
Standby Time: 1 Year
Flow Range: 5~60L/min
Single Count: 0.00~9999.9
Total Cumulative Number: 0~999999
Total Amount Accumulated: 0.00~99999.9x1000
Measurement Unit: L, GAL, PTS, KG
Applicable Battery: 2 x AAA battery 1300mAh
Package List:
1 x Digital Diesel Fuel Flow Meter
1 x User Manual
Electronic aluminum turbo pulse generator digital diesel flow meter with LCD display 1 inch inner wire
With high accuracy, durable life, small volume, Electronic Aluminum Turbine Pulser Digital Diesel Fuel Flow Meter Series are mainly used to transfer light oil such as diesel, gasoline. Its module design can be used with output module, sensor and long-distance transfers. Other Material like Plastic or Stainless Steel are also available.
The model designed can be used in conjunction with output module, sensor and remote transmitter.
Good repeatability and strong stability, unique LCD (LCD)count, you can reset the 5 bit (9999.9) single oil volume, a cumulative total of 6 bits are not cleared. The accuracy ofthe positive and the negative is less than or equal to 1%the repeatability error of less than 2% units of measurement for (/L, /GAL /QTS a gallon, quart, pint (PTS)switch freely is the rise in domestic basic, easy to use), two keys (CALIBRATE DISPLAY) with the use of simple and easy to operate!
Model Number | Item | Data | |
Inlet Size | 1' | 1.5' | |
Flow Rate | 20-150 lpm | 40-350 lpm | |
Body Material | Aluminum | Aluminum | |
Application Medium | Diesel, light oil | Diesel, light oil | |
Unit Count | 5 digits | 5 digits96kN | |
Total Count | 5 digits Accumulationx100 999,990 | ||
Max.Working Pressure | 290pa(20 bar) | 290pa(20 bar) | |
Package | 20 pcs/carton | 20 pcs/carton | |
Carton Dimension | 45x43x20 cm | 45x43x20 cm | |
G.W/N.W | 12kgs/11kgs | 15kgs/14kgs | |
Optional unit conversion of Gallon, Liter, PT, and QT
Sensitive PPS rotor makes accuracy ≤0.5%
Lithium battery can supply 9000 hours power
Press the button of CAL and RESET at the same time to check the coefficient and total accumulated figure.
EXAMPLE OF Error Coefficient Adjustment
When the original figure is 1.000, it will display as 100 L oil, the actual oil pump capacity is also 100 L. In case the user
wants to reduce 2 L oil, then press the button of CAL for 3 seconds, adjust it to 1.020 according to the Error coefficient
Calibration. Then the oil pump capacity will be 98 L. For 96 L, adjust it to 1.040; visa versa.
Battery Low Prompt
When the voltage of battery is between 2.2 v to 2.4 v, it will display as LBAT, to remind the user to replace the battery.
Maintenance and Preservation
This flow meter needs the battery with life span of at least 9,000 hours (1 year) as the power supply. The short battery life will lead to the battery leakage during working and result in the damage of the flow meter. The standby life of this flow meter is designed as 2 years. Battery replacement every one year is recommended. In case the LCD display becomes dim or the LBAT occurs, it is time to replace the battery. We recommend the users to check the Battery electrode to clear the rusting in case. Take out the battery if the flow meter is not used for a long time.
